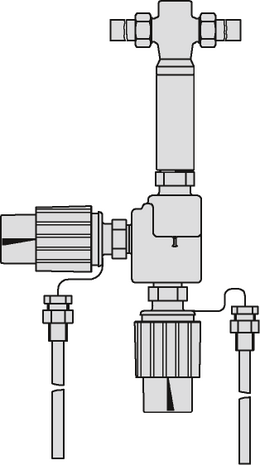

2437/2439/2430 - DIN

Safety temperature limiter

USAGE

  • Temperature control

MEDIUM
Water and other liquids

VERSION
DIN

MEDIUM TEMPERATURE
2 to 200 °C / 35.6 to 392 °F

VALVE SIZE
DN 15 to DN 50

PRESSURE RATING
PN 25

FUNCTION

  • TR + STL

APPLICATION

  • Valve closes when the temperature rises (heating)

TEMPERATURE LIMIT
10 to 120 °C / 50 to 248 °F

TEMPERATURE SET POINT
0 to 150 °C / 32 to 302 °F

RESPONSE SPEED

  • Standard

Special features

  • Safety temperature limiter
  • Consisting of valve, control thermostat, and safety thermostat
  • Extended safety according to DIN EN 14597
Valve 2437
  • Globe valve with plug balanced by a bellows
  • Connection nuts and welding or threaded ends
  • Compact design with particularly low overall height

Accessories

  • - - -
Valve 2437
  • Double adapter to connect additional thermostats
  • Manual override

Options

  • - - -

Information

  • T 2181

    Information Sheet:
    Series 43 Self-operated Temperature Regulators
    Typetested safety devices
    [EN][DE]
  • T 2172

    Type 43-5 and Type 43-7 Self-operated Temperature Regulators (for heating)
    Type 43-6 Self-operated Temperature Regulator (for cooling)
    [EN][DE][TR]
  • T 2185

    Safety Temperature Limiters (STL) with Type 2439 Safety Thermostat
    [EN][DE]
  • T 2170

    Information Sheet:
    Series 43 Self-operated Temperature Regulators
    [EN][DE]

Support

  • EB 2430

    Type 2430 Control Thermostat
    [EN][DE]
  • EB 2171

    Types 43-1, 43-2, 43-5 and 43-7 Temperature Regulators
    [EN][DE]
  • EB 2185

    Type 2439 Safety Temperature Limiter (STL)
    [EN][DE]

DXF file from data sheet

  • R 0001

    Solders with lead compounds in Type 2430 Thermostat not used in joints that come into contact with the process medium
    [EN][EN][DE][DE]
